Keychron Q65 Max QMK/VIA Wireless Custom Mechanical Keyboard
Keychron Q65 Max QMK/VIA Wireless Custom Mechanical Keyboard - Fully Assembled Knob / Carbon Black / Gateron Jupiter Banana is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- The keyboard PCB, the case, and the steel plate.
- Keycaps (included Mac & Windows keycaps).
- Switches.

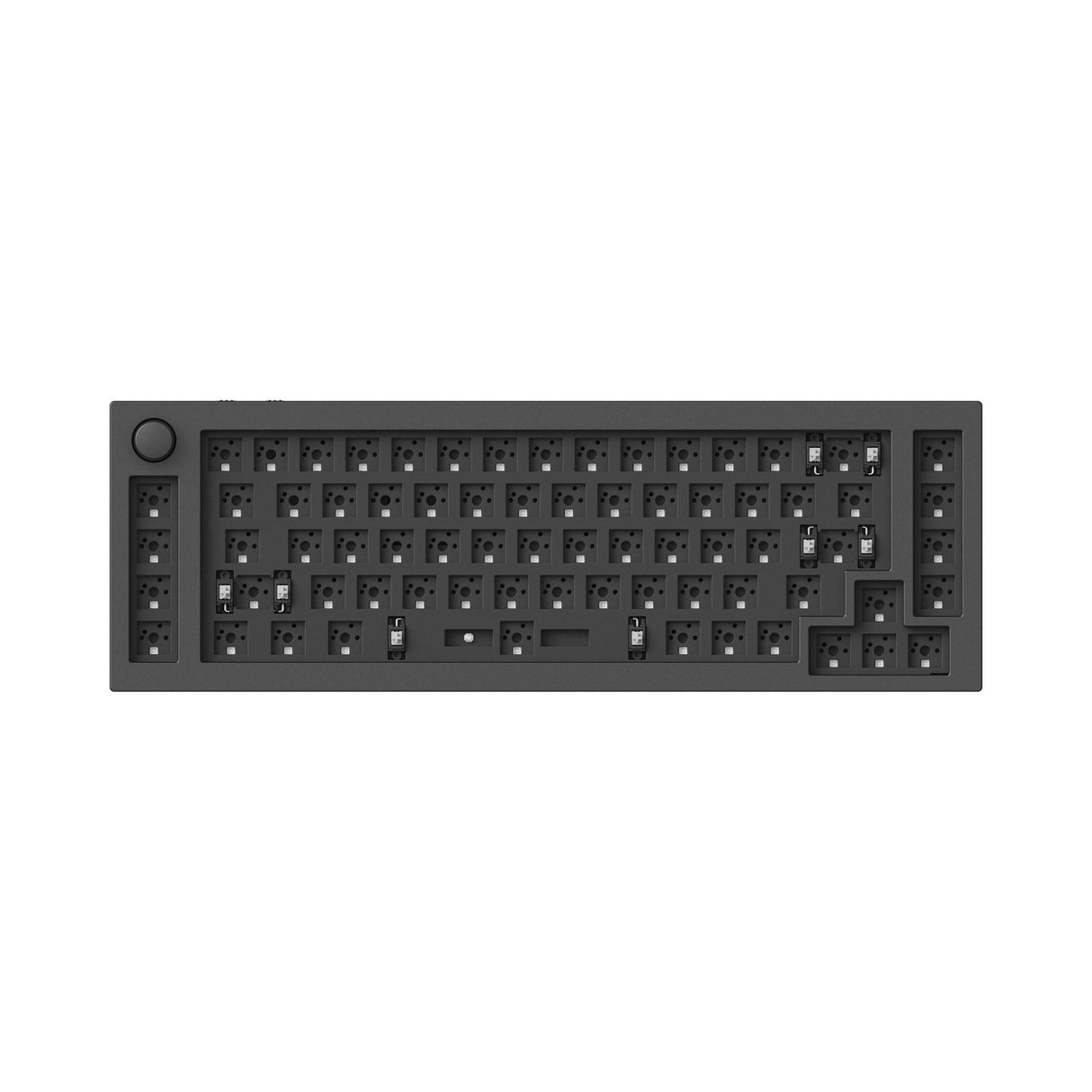

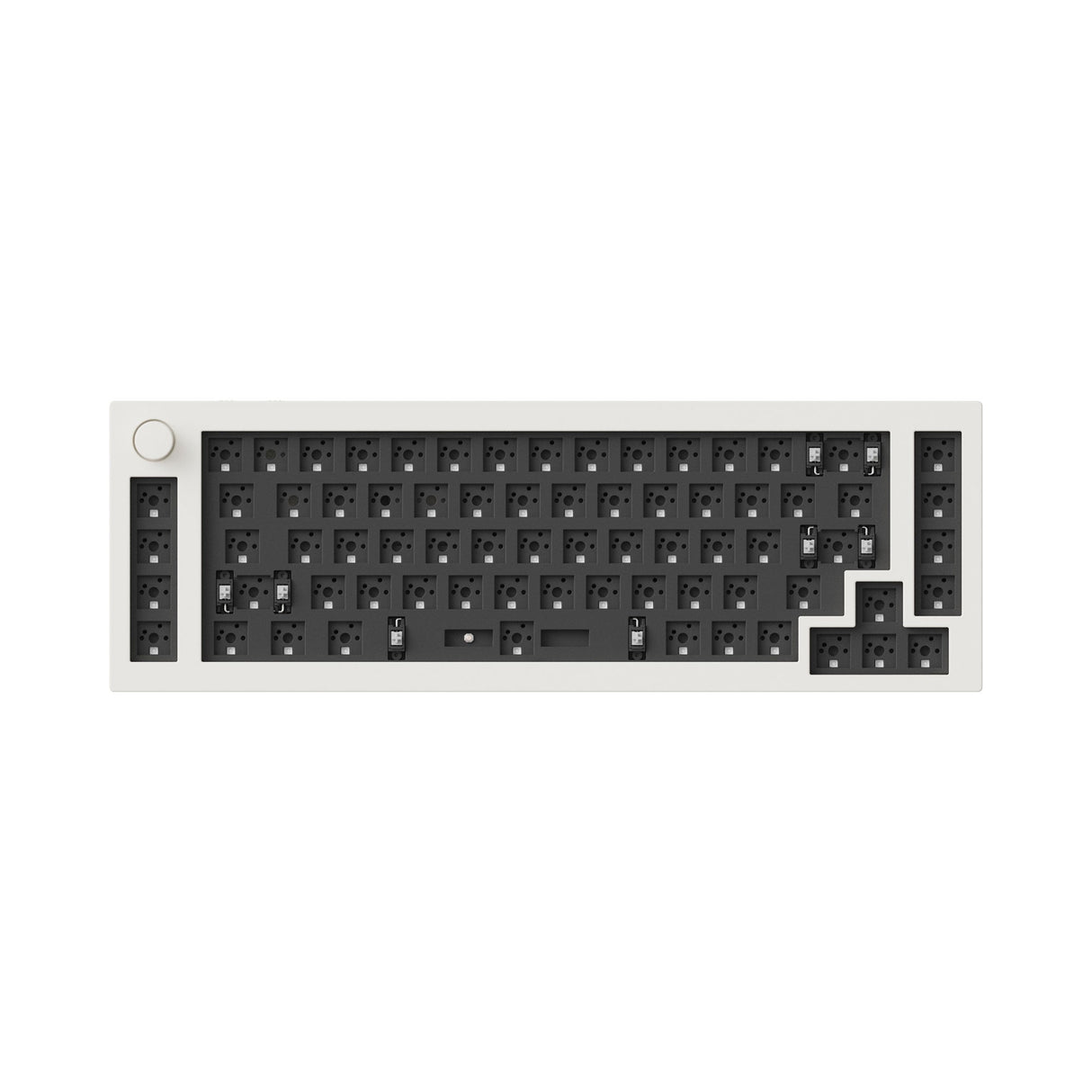

The Barebone version does not include the keycaps and switches.
Keychron Q65 Max QMK/VIA Wireless Custom Mechanical Keyboard
Keychron Q65 Max
The Q65 Max Keyboard offers three different connectivity options: 2.4G wireless, Bluetooth, and Type-C wired connections, enabling you to work or entertain freely while reducing desk clutter and facilitating remote work. Acoustic foam further refines the user experience by dampening keystroke sounds and providing a smoother, more tactile typing feel.
Choose the switches and more keyboard accessories for your Q65 Max
Significantly Enhanced Acoustic Foams
Elevate the typing experience with a combination of premium acoustic foams such as IXPE, PET, and Latex. Each keystroke becomes enjoyable, making every tap a delight for the senses.
Easy Assemble
We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.
2.4 GHz & Bluetooth Connection
Get ready for a brand new gaming experience with the Q65 Max’s 2.4 GHz wireless connection with a 1000 Hz polling rate. You can also connect the Q65 Max with up to 3 devices through its stable Bluetooth 5.1 for seamless multitasking across your computer, phone, and tablet. Switch among them swiftly.
A Refined Piece of Metal Art
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q65 Max.
Hot-swappable
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
Double Gasket Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
An Epic Core Inside The Keyboard
A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games.
KSA Double-Shot PBT Keycaps
To further fine-tune your typing experience, we designed our unique Keychron spherical-angle (KSA profile) double-shot keycap set with premium non-backlight shine through PBT material, that is oil-resistant and durable for long-term use.
Switch layouts between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility with Windows devices, the Keychron Q65 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Programmable Knob
Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.
You can easily customize the Q65 Max's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
Setting the macros for "zoom in/out"
Using the knob as "zoom in/out"
Program Q65 Max with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.
Get the Q65 Max keymap working on VIA
Since the VIA code for the Q65 Max is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the Q65 Max keymap working on VIA.
Download Q65 Max Knob ANSI (US) Keymap JSON File
Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.
South-facing RGB LED Lights
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Gateron Jupiter Switch
Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
All New Screw-in PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron Q65 Max also supports third-party screw-in PCB stabilizers.
What's in the box?
Specs
| Width | 121 mm |
|---|---|
| Length | 363 mm |
| Front Height | 20 mm (without keycaps) |
| Back Height | 33.6 mm (without keycaps) |
| Feet Height | 2.7 mm |
| Angle | 6.5° |
| Weight | 2420 g ± 10g (Fully Assembled Version) |
| Body Material | Aluminum |
| Plate Material | Steel |
| Polling Rate | 1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth) |
| Backlight | 22 types of RGB backlight options plus endless possibilities |
| Operating Environment | -10℃ to 50℃ |
| Battery | 4000 mAh Rechargeable li-polymer battery |
| Keycaps (Fully Assembled Version) | KSA double-shot PBT keycaps, not shine-through (Fully Assembled version) |
|---|---|
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Switches | Gateron Jupiter (Fully Assembled version) |
| Backlight | South-facing RGB LED |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabilizer | Screw-in PCB stabilizer |
| Connectivity | 2.4 GHz/Bluetooth/ Type-C wired |
| Cable | Type-C cable + Type-A to Type-C adapter |
| Hot-swappable | Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc. |
| Cable Length | 1.8 m |
|---|---|
| Wireless Working Time (Backlit off) | Up to 180 hours (Lab test result may vary by actual use) |
| Wireless Working Time (RGB) | Up to 30 hours (Lowest brightness) |
| Bluetooth Version | 5.1 |
| Compatible System | macOS/Windows/Linux |
| Charging Port | USB type-C |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Bluetooth Device Name | Keychron Q65 Max |
| Charging Time | Around 5 hours |
Learn more about the Keychron Q65 Max such as the Q65 Max shortcuts, assembling the Q65 Max, factory reset, and more in the FAQ section.
